Emergency Stop Button

The parts list is very basic. A Cutout Switch that could be operated by being stomped/smashed/hammered down upon, work and still survive, and easily reset. Also I wanted a basic circuit. Less to go wrong. So, a mechanical switch, which is reset by rotating the button top itself. A box big enough to put all the parts in and take the abuse and be electrically safe. A power cord. Retaining clips to hold the power cord in the box.

The first thing is to gather your parts and tools. Here, we are going to use a Power Drill and various bits, Soldering Iron, Heat Gun (or lighter if you don't have one), Wire Cutters, Hemostats (surgical clamp. well worth getting some), Screwdrivers - Standard and Philips head, a Nail or some other sharp pointy thing to mark the box for drilling holes, and last but not least, Pointy Nose Pliers. First off, I started by disassembling the Safety Switch. This allowed me to get the correct size for the hole we are going to drill to fit it, and to position the switch on the box, in the most central position. Here you can see I used the yellow face plate to best find the layout. Putting it in closest to the centre of the box will give the switch the most stable position when using this device. Getting it close to centre visually is good enough here. First Cut Is the Hardest. I started by drilling a smaller guide hole on the top of the box, the bottom plate or lid will be the base, and then we go up a few bit sizes to a bigger bit. It is always best to start off smaller then go up in size. One, this reduces the chance of cracking the plastic, and two, you have a guide hole for the large drill bit, stopping it from slipping and drilling off course. As I used an electric hand drill, the hole was not perfect, but for our purposes, it will do nicely. Next I checked the fit, with the switch. All looks good so far.

Putting the switch fully together, we can check the fit and operation. The tightened button holds nicely in the box. Now, to take it all apart again. More holes to drill. We need to drill holes in each end of the box for the power cord. The holes will be measured off the collet size. One hole in each opposite end. Simple! The type of Collets I used, tighten by screwing in. As you can see, I have also knotted the cable, as well as use a collet restraint. Over time, the collets may loosen and lose grip, so the knot is an extra safety measure. Crude, but effective.

Now we are onto striping the wires, soldering, putting on the heatshrink and then wiring the switch. Some of the wires are going to be directly joined together, and the others put on the switch. In both cases, I have used solder on the wire. Before doing so, note that the mains lead is cut in two, with one end being shorter than the other. I made the outlet side about 1.2 meters or 120cm long, and the wall plug end cable with the remaining length. You want a short length where you plug your tools into, so the switch is close to you. The short length is long enough in use to allow the tools to be use above your head height and have the Safety Switch close by your feet, ready to be used if needed. The wired that go on the switch are soldered, but not soldered onto the switch. They are held down by the retaining screws on the switch assembly. The solder on the wire provided mechanical strength and keeps the wires together when the screw is tightened down. Plus, when you bend the wire into a curved shape it retains it better. A bonus. Next is joining the some of the wires together. The basic circuit diagram shows which wires go on the switch and which ones are joined together.

Heat Shrink Tubes are great. Just thought that I would put that out there. They are fantastic. Not only can you use them for electrical products, but for other hobbies projects too. I have bought lots of tubes, in different sizes and colours. They only cost a few buckaroos, and kept in an organiser case, they will make your life easier. Here they are doing an important role of insulating the bare wires in this project. I could have gone and bought electrical joiners, but wanted to use what I already had, and plus, heatshrink works well, it's neat and tidy, and if done right, electrically safe. (stops the electrons from escaping the wires to harm you!) Because we are using mains power, I have used double tubing. Using two different size tubes, sliding one over the over, to provide a better electrical insulation. When I soldered the wires, I used a hemostat to hold the wires side by side, and then soldered them together. I pre-tinned the wires before I joined them. You could use pliers to hold the wires as you soldered them, but hemostats have a locking ratchet when you clamp them in place. Plus, they are stainless steel, so the solder wont stick to them, and they draw the heat away, cooling the solder quickly, and preventing the heatshrink from shrinking before we get it into place.

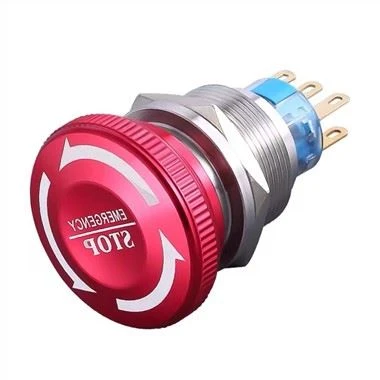

Here the wiring is completed. The wires are joined. The the active wired (brown) is attached to the switch. On the Switch the Red Tab is the Normally Closed contacts (N/C) and the Green Tab is the Normally Open contacts (N/O). We are putting the Brown (Active) wire onto the N/C contact points. These allow the power to flow till we hit or stomp on the big red switch button, then cutting the power flow. To reset the switch back to the On position, we simply rotate the red button in the indicated direction of the arrows on top. Such a simple and very useful device! When screwing in the bottom plate of the Jiffy Box, there are usually included small rubber feet, which go in the screw holes on the bottom. Put these in to make a neater looking box, and they are non-slip also.
